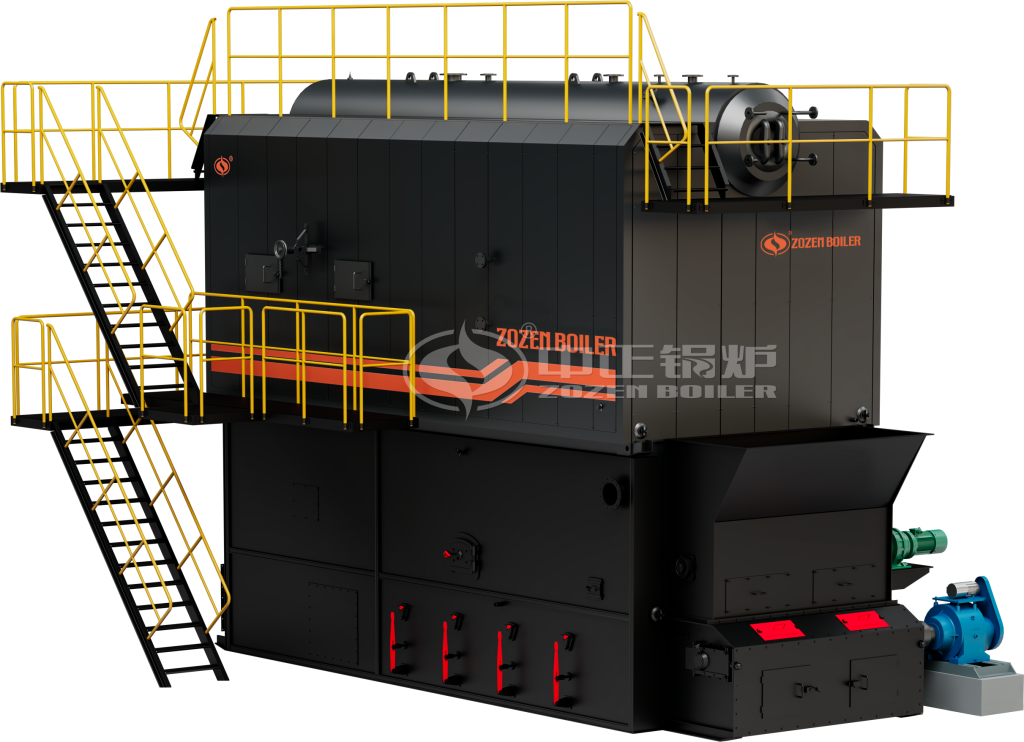

SZL series biomass-fired steam boiler

Product thermal capacity:	4-35 t/h
Working pressure:	1.0-2.5 MPA
Outlet temperature:	184-350 ℃
Available fuel:	Biomass molding granules, wood chip, corn cob, saw dust
Available industries:	Heating, chemical, food, tobacco, textile, print and dyeing, feed, medicine, building materials, wine, hospital

Introduction of SZL series biomass-fired steam boiler

SZL series biomass-fired steam boiler is package or shop-assembled water tube boiler with double steam drum and chain grate stoker structure. 4-6 tph boiler is package boiler and 6-35 tph is shop-assembled structure, which is composed of 2 parts, upper part is heat absorbing surface and lower part is combustion equipment. chimney.

The former part of boiler body is surrounded by membrane wall, its upper part connects with boiler drum and lower part connects with header, which forms a combustion chamber to absorb the radiated heat from furnace; there are dense convection tube bundle between the back side of upper and lower drum, the high temperature smoke enters a separate economizer after flushing heat absorbing surface then discharge from

Feature of SZL series biomass-fired steam boiler

1. Automatic production line.

2. The welding of important parts like the vertical and circular seams of the boiler, the tubes, the inside of boiler and the flange are all adopted automated welding processes such as submerged arc welding or gas shielded welding to ensure the welding quality. All the vertical and circular seams will be done 100% radiographic inspection.

3.The user can reasonably adjust the air distribution according to different combustion conditions to ensure that the fuel is fully burnt.

4.Graded air supply and special furnace arch structure decrease the NOx emissions to 100mg/m³.
