| Product thermal capacity: | 1-20 t/h |
| Working pressure: | 0.7-2 MPa |
| Available fuel: | Natural gas, coke oven gas, biogas, diesel, heavy oil, light oil, crude oil, etc. |
| Available industries: | Heat supplying, chemical, food, textile, printing and dyeing, cigarettes and tobacco, fodder, pharmacy, building materials, brewery, rubber, hospital etc. |

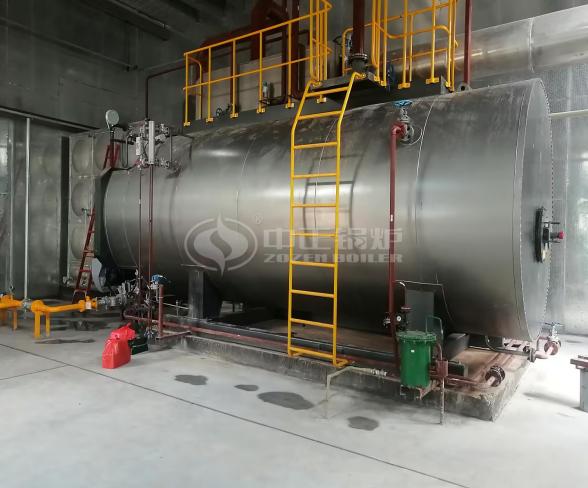

Introduction of WNS Series Packaged Boiler
The WNS series packaged boiler is designed as efficient steam solutions tailored to meet a variety of industrial needs. Characterized by their compact structure, high integration, and easy installation, WNS series packaged boilers find wide applications in industries such as food processing, chemical, and pharmaceuticals. With a horizontal three-pass design, the WNS series packaged boilers ensure a thermal efficiency of up to 98%, maximizing fuel utilization. Equipped with advanced condensing technology, these boilers effectively recover waste heat from flue gases, further enhancing efficiency and reducing emissions. The fully automated intelligent control system enables precise management of temperature and pressure, ensuring safe and stable operation while enhancing user convenience. Environmental performance stands out as a key feature of the WNS series packaged boilers. Their low nitrogen combustion technology significantly reduces nitrogen oxide emissions, meeting stringent environmental standards and aiding businesses in achieving sustainability goals.
Features of WNS Series Packaged Boiler
Efficient Performance: The WNS series packaged boiler by ZOZEN excels in efficiency, ensuring optimal energy utilization and cost-effectiveness in industrial operations. With their advanced design and combustion technology, these boilers deliver high thermal efficiency, resulting in significant fuel savings.
Compact Design: These WNS series packaged boiler features a compact design, making them space-efficient and easy to install in various industrial settings. Their streamlined construction ensures they can be seamlessly integrated into existing boiler systems without requiring extensive modifications.
Advanced Control Systems: Equipped with state-of-the-art control systems, the WNS series packaged boiler offers precise and automated operation. This advanced control technology allows for remote monitoring and control, enhancing operational efficiency and safety.
Reliable Performance: ZOZEN’s WNS series packaged boiler is known for their reliable performance and durability. Built with high-quality materials and components, these boilers are designed to withstand the rigors of industrial use, ensuring uninterrupted steam supply and consistent operation over extended periods.
Specification of WNS Series Packaged Boiler
| Model | Rated steam capacity (t/h) | Rated working pressure (MPa) | Rated steam temperature (℃) | Maximum transport dimension (m) |
| WNS1-0.7-Q(Y) | 1 | 0.7 | 170 | 3.25×1.80×2.00 |
| WNS1-1.0-Q(Y) | 1 | 1 | 184 | 3.25×1.80×2.00 |
| WNS1.5-1.0-Q(Y) | 1.5 | 1 | 184 | 3.65×2.05×2.45 |
| WNS1.5-1.25-Q(Y) | 1.5 | 1.25 | 194 | 3.65×2.05×2.45 |
| WNS2-1.0-Q(Y) | 2 | 1 | 184 | 4.60×2.20×2.60 |
| WNS2-1.25-Q(Y) | 2 | 1.25 | 194 | 4.60×2.20×2.60 |
| WNS3-1.0-Q(Y) | 3 | 1 | 184 | 5.35×2.40×2.80 |
| WNS3-1.25-Q(Y) | 3 | 1.25 | 194 | 5.35×2.40×2.80 |
| WNS4-1.25-Q(Y) | 4 | 1.25 | 194 | 5.00×2.60×2.95 |
| WNS4-1.6-Q(Y) | 4 | 1.6 | 204 | 5.00×2.60×2.95 |
| WNS5-1.25-Q(Y) | 5 | 1.25 | 194 | 5.55×2.658×3.20 |
| WNS5-1.6-Q(Y) | 5 | 1.6 | 204 | 5.55×2.658×3.20 |
| WNS6-1.25-Q(Y) | 6 | 1.25 | 194 | 5.93×2.80×3.20 |
| WNS6-1.6-Q(Y) | 6 | 1.6 | 204 | 5.93×2.80×3.20 |
| WNS8-1.25-Q(Y) | 8 | 1.25 | 194 | 7.00×2.80×3.25 |
| WNS8-1.6-Q(Y) | 8 | 1.6 | 204 | 7.00×2.80×3.25 |
| WNS10-1.25-Q(Y) | 10 | 1.25 | 194 | 7.65×2.80×3.25 |
| WNS10-1.6-Q(Y) | 10 | 1.6 | 204 | 7.65×2.80×3.25 |
| WNS15-1.25-Q(Y) | 15 | 1.25 | 194 | 7.95×3.50×3.75 |
| WNS15-1.6-Q(Y) | 15 | 1.6 | 204 | 7.95×3.50×3.75 |
| WNS20-1.25-Q(Y) | 20 | 1.25 | 194 | 8.55×3.90×4.15 |
| WNS20-1.6-Q(Y) | 20 | 1.6 | 204 | 8.55×3.90×4.15 |
